Products

CHLORINE DIOXIDE GENERATOR

Offering online Generation effectively with different methods within a single unit.

Methods

1. Reacting pre-treated chlorinated water with Sodium chlorite at proportionate Dosing in the system by a pump designated as a Single pump method.
2. With the above method while adding Hydrochlroric acid by a second pump – designated as a Two-pump method.
3. Instead of Chlorinated water, while chlorine gas is generated by reaction of hypochlorite & Hydrochloric acid solution with water at rated dosing & finaly sodium chlorite solution reacting the above with a proportionate dosing to produce Clo2 – designated as a Three pump method.

Range in size/capacity – 0.768Kg/hr to 2.4 kg/hr.

Model

• 1000 SP – Chlorinated water (1500 PPM) System will produce Clo2 @0.768Kg/Hr approx.
• 3000 SP – Chlorinated water ( 1500 PPM) System will produce Clo2 @0.768 – 2.4 kg /hr approx.
• 3 Pump method - available from 0.768 to 2.4 kg /hr approx. with various sizes as per requirement.

Safe on demand produce Clo2,
Simple, reliable and low maintenance,

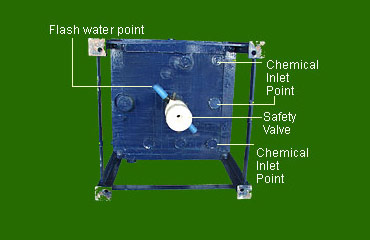

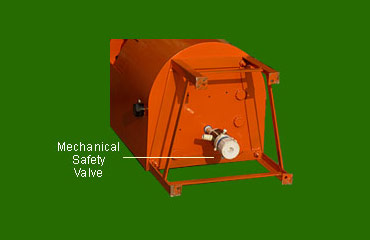

Manualy operated but auto interlocking with mechanical safety devices,
Rigid FRP casing & floor mounted,
Size varies to capacity (500X600X1200) Max,
Uses Industrial water treatment, Cooling tower and other area for primary disinfectant against Bacteria, Viruses etc.
It can be use for treatment of potable water also by using approved food graded reagent only.
